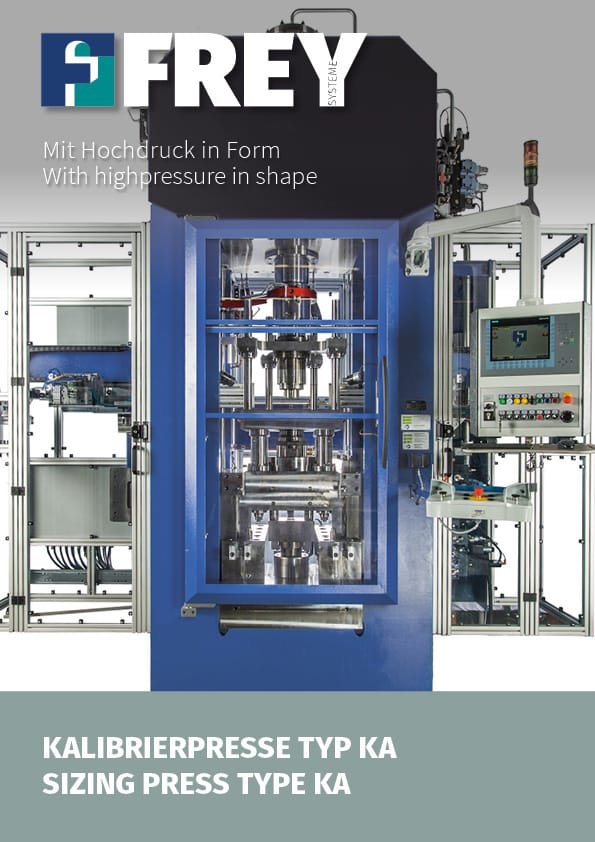

The axial calibration presses of the KA product line from Frey are designed for the reworking of sintered parts. They complement our powder presses and are integrated into your production process by handling.
The repressing of the parts increases the manufacturing quality and compensates for inaccuracies that may arise, for example, due to material shrinkage.
Individual upstream and downstream process steps – for example, aligning the compacts, wetting with calibration oil, faceting or thread cutting – can be realized on request!
Pressing force OK 500kN
Upper piston stroke 150mm
Ejection force UK 250kN
Ejection distance 50mm
Press force OK 1200kN
Upper piston stroke 200mm
Ejection force UK 500kN
Ejection stroke 50mm
Press force OK 2000kN
Upper piston stroke 250mm
Ejection force UK 1000kN
Ejection stroke 100mm
Press force OK 3500kN
Stroke of upper piston 300mm
Ejection force UK 2000kN
Ejection distance 100mm
Press force OK 5000kN
Upper piston stroke 350mm
Ejection force UK 2500kN
Ejection stroke 150mm
HE – High Efficiency servo pump
S – Proven hydraulics with control valve technology
