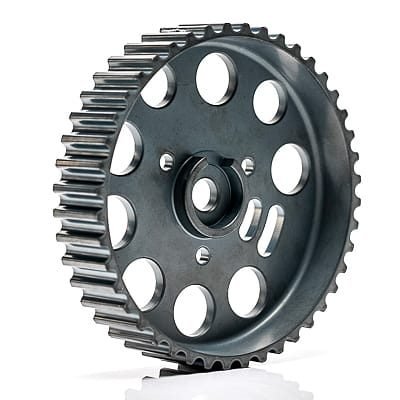

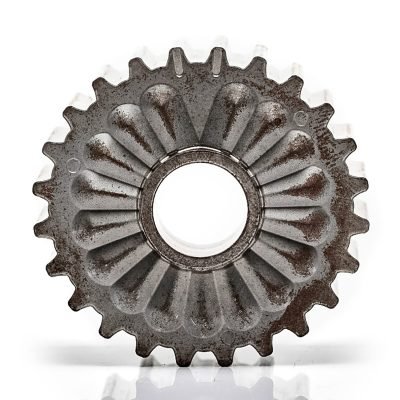

The axial calibration presses of the KA product line are designed for the reworking of sintered parts. They complement our powder presses and are integrated into your production process by handling.
The re-compaction of the surface increases the manufacturing quality and compensates for inaccuracies that may arise, for example, due to material shrinkage.
Individual upstream and downstream process steps – for example, aligning the compacts, wetting with calibration oil, faceting or thread cutting – can be realized on request!
Pressing force OK 500kN
Stroke upper piston 150mm
Ejecting force UK 250kN
Ejection stroke 50mm
Pressing force OK 1200kN
Stroke upper piston 200mm
Ejecting force UK 500kN
Ejection stroke 50mm
Pressing force OK 2000kN
Stroke upper piston 250mm
Ejecting force UK 1000kN
Ejecting stroke 100mm
.
Pressing force OK 3500kN
Stroke upper piston 300mm
Ejecting force UK 2000kN
Ejecting stroke 100mm
.
Pressing force OK 5000kN
Stroke upper piston 350mm
Ejecting force UK 2500kN
Ejecting stroke 150mm
.
HE – high-efficiency servo pump
S – proven hydraulics with control valve
